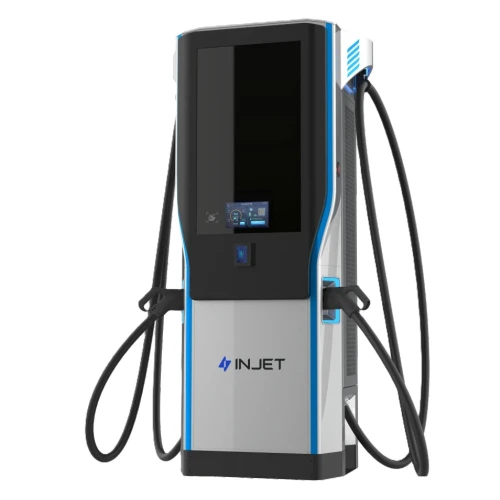

Injet Ampax DC EV Charger

INSCDAK2

Kontakt oss
Ikke på lager (bestillingsvare) Kontakt oss om leveveringstid

Injet Ampax DC EV Charger 80KW

Pris 32 538 Euro

DC Power Output

Input Voltage Rating 400 VAC ±10%, 50/60 Hz
Power Wiring 3P+N+PE
DC Voltage Output 150~1000V DC
Charging Connector CCS2+CCS2
Charging Cable Length 5 Meters/7.5 Meters Optional
DC Power Output Rating 60kW/80kW/120kW/160kW/180kW/240kW/320kW
Constant Power Range 300~1000V DC
The Maximum Output Current 300A
PF (Power Factor) >0.98 (Load≥50%)
THD-I ≤5% (Rating Voltage Input, Load≥50%)
Peak E􀆶ciency ≥96%
Voltage Stabilized Accuracy ≤±0.5%
Current Stabilized Accuracy ≤±1%
Output Voltage Error ±0.5%
Output Current Error ≤±1% (When Output Current≥30A); ≤±0.3A (When Output Current<30A)
Ripple Factor ≤±0.5% (RMS)
Electric Energy Measurement Method Measuring DC Output Electric Energy
Connector Mechanical Operating Life ≤10000 Times, Without Load
Charging Control RFID; QR Code (Optional); Credit Card (Optional)
Human-Machine Interface 10-Inch High-Contrast Touch Screen
Indicators High Brightness Multi-Color LED Lights
Network Interface Ethernet (RJ-45)/4G/Wif
Protocol (EVSE & Backend) OCPP 1.6J; Security Level 3; Upgradable to OCPP 2.0.1 in 2025
Protocol (EVSE & EV) DIN70121, ISO15118
Storage Temperature -40℃ to 75℃
Work Temperature -30℃ to 50℃, Derating Output in 55℃
Touch Screen Operating Temperature -20℃ to 70℃
Work Humidity Up to 95% Non-Condensing
Work Altitude ≤2000m
Cooling Method Forced Air Cooling
Protection Over Voltage Protection; Under Voltage Protection; Over Current Protection; Over Power Protection; Over Temperature Protection; Surge Protection Device; Short Circuit Protection; Inter Modulation Distortion
Protection Ratings IP54
Dimension (H*W*D, mm) 1040*580*2200
Net Weight ≤500kg
Enclosure Material Stainless steel
Color RAL 7032(Grey)

Injet Ampax

Commercial DC Ultra - Rapid

Charging Station

Introducing the Ampax Enterprise DC charger - a robust solution
that combines power, scalability, and cutting-edge technology.
Whether you’re charging electric vehicles at a commercial
facility, fleet depot, or public charging station, the Ampax
charger delivers exceptional performance and convenience.

CONFIGURATION FOR HELIOKRAFT
  • Enterprise DC charger with 2 CCS charging points (5m cable), with 120 kW based on 4 x 30 kW power modules
  • User-friendly 10 Inch-LCD-Touch-Screen.
  • Eichrecht-compliant / AFIR compliant including Payter P66 payment terminal
  • Rust-free materials - enclosure made out of stainless-steel
  • OCPP-Backend (licence for 2 public DC charging points including credit + debit card payment integration)
KEY FEATURES
  • Dual CCS2 Charging Points: With two CCS2 charging points,
    the Ampax charger enables simultaneous charging for
    multiple vehicles.
  • Scalable Power Range: Starting at 60 kW, the Ampax
    charger can scale up to an 240 kW. Alternative start wit 80kW
    and scale up to 320 kW
  • Patented Programmable Power Controller (PPC): Our
    unique PPC technology ensures hassle-free installation and
    high reliability - the Ampax charger is designed for simplicity.
  • Certified Precision: PTB meter
  • Seamless Connectivity: Stay connected with Ethernet, 4G,
    and OCPP 1.6 OCA certification. Monitor charging sessions,
    track usage, and manage your network e􀆳ortlessly.
  • Over-the-Air Updates: Progress never stops. 􀆱e Ampax
    charger receives over-the-air updates, ensuring it stays upto-
    date with the latest features and improvements.
  • 10-Inch Touch Display: Accessible and intuitive, the 10-inch
    touch display provides a user-friendly interface. Monitor charging
    status, adjust settings, and view real-time data with ease.

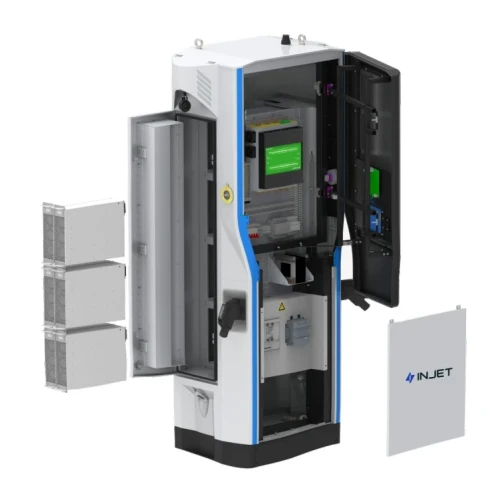

Injet DC Chargers Adopted a Modularised Design Approach
  • PPC (Programmable Power Controller)
  • Integrated Smart HMI
  • Scalable Power Modules
  • Cabinet
  • Cable & Connector
  • Payment Terminal

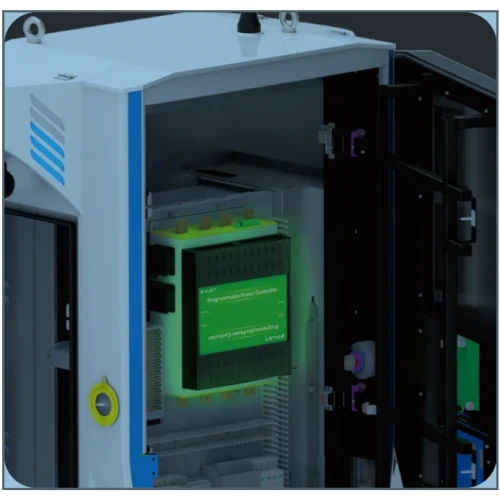

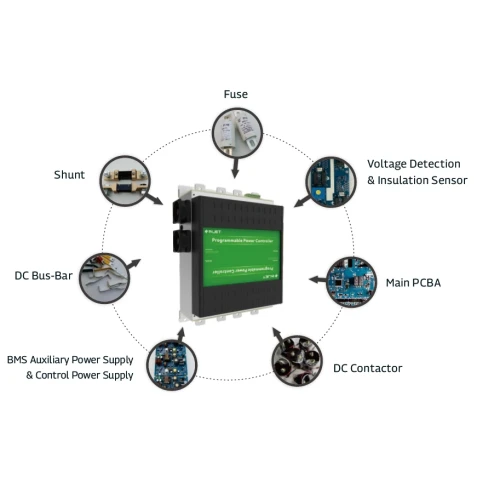

PPC Makes DC Chargers Simple and Powerful

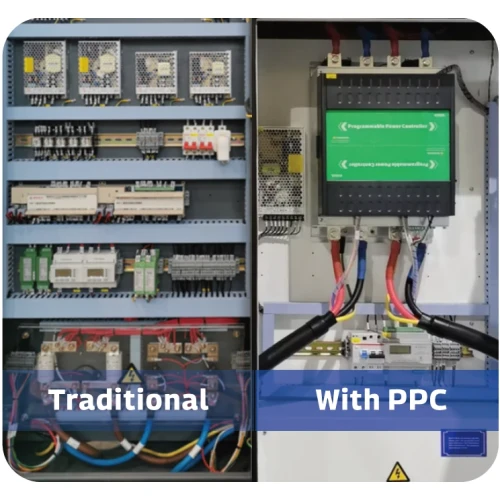

Traditional DC Chargers Consist of
  • 600 PCS of Terminal Blocks + 300 PCS Wires
  • DC Watt-Hour Meter
  • Voltage Detection Transmitter
  • Insulation Detector
  • Charging Pile Controller
  • 24V/12V AC/DC Switching Power Supply (for
    GB/T Standard)
  • AC/DC Power Supply Module
  • MCB, Relay, SPD
  • MCCB, AC Contactor
  • DC Vacuum Contactor
Input Voltage Rating 400 VAC ±10%, 50/60 Hz
Power Wiring 3P+N+PE
DC Voltage Output 150~1000V DC
Charging Connector CCS2+CCS2
Charging Cable Length 5 Meters/7.5 Meters Optional
DC Power Output Rating 60kW/80kW/120kW/160kW/180kW/240kW/320kW
Constant Power Range 300~1000V DC
The Maximum Output Current 300A
PF (Power Factor) >0.98 (Load≥50%)
THD-I ≤5% (Rating Voltage Input, Load≥50%)
Peak E􀆶ciency ≥96%
Voltage Stabilized Accuracy ≤±0.5%
Current Stabilized Accuracy ≤±1%
Output Voltage Error ±0.5%
Output Current Error ≤±1% (When Output Current≥30A); ≤±0.3A (When Output Current<30A)
Ripple Factor ≤±0.5% (RMS)
Electric Energy Measurement Method Measuring DC Output Electric Energy
Connector Mechanical Operating Life ≤10000 Times, Without Load
Charging Control RFID; QR Code (Optional); Credit Card (Optional)
Human-Machine Interface 10-Inch High-Contrast Touch Screen
Indicators High Brightness Multi-Color LED Lights
Network Interface Ethernet (RJ-45)/4G/Wif
Protocol (EVSE & Backend) OCPP 1.6J; Security Level 3; Upgradable to OCPP 2.0.1 in 2025
Protocol (EVSE & EV) DIN70121, ISO15118
Storage Temperature -40℃ to 75℃
Work Temperature -30℃ to 50℃, Derating Output in 55℃
Touch Screen Operating Temperature -20℃ to 70℃
Work Humidity Up to 95% Non-Condensing
Work Altitude ≤2000m
Cooling Method Forced Air Cooling
Protection Over Voltage Protection; Under Voltage Protection; Over Current Protection; Over Power Protection; Over Temperature Protection; Surge Protection Device; Short Circuit Protection; Inter Modulation Distortion
Protection Ratings IP54
Dimension (H*W*D, mm) 1040*580*2200
Net Weight ≤500kg
Enclosure Material Stainless steel
Color RAL 7032(Grey)

Injet Ampax

Commercial DC Ultra - Rapid

Charging Station

Introducing the Ampax Enterprise DC charger - a robust solution
that combines power, scalability, and cutting-edge technology.
Whether you’re charging electric vehicles at a commercial
facility, fleet depot, or public charging station, the Ampax
charger delivers exceptional performance and convenience.

CONFIGURATION FOR HELIOKRAFT
  • Enterprise DC charger with 2 CCS charging points (5m cable), with 120 kW based on 4 x 30 kW power modules
  • User-friendly 10 Inch-LCD-Touch-Screen.
  • Eichrecht-compliant / AFIR compliant including Payter P66 payment terminal
  • Rust-free materials - enclosure made out of stainless-steel
  • OCPP-Backend (licence for 2 public DC charging points including credit + debit card payment integration)
KEY FEATURES
  • Dual CCS2 Charging Points: With two CCS2 charging points,
    the Ampax charger enables simultaneous charging for
    multiple vehicles.
  • Scalable Power Range: Starting at 60 kW, the Ampax
    charger can scale up to an 240 kW. Alternative start wit 80kW
    and scale up to 320 kW
  • Patented Programmable Power Controller (PPC): Our
    unique PPC technology ensures hassle-free installation and
    high reliability - the Ampax charger is designed for simplicity.
  • Certified Precision: PTB meter
  • Seamless Connectivity: Stay connected with Ethernet, 4G,
    and OCPP 1.6 OCA certification. Monitor charging sessions,
    track usage, and manage your network e􀆳ortlessly.
  • Over-the-Air Updates: Progress never stops. 􀆱e Ampax
    charger receives over-the-air updates, ensuring it stays upto-
    date with the latest features and improvements.
  • 10-Inch Touch Display: Accessible and intuitive, the 10-inch
    touch display provides a user-friendly interface. Monitor charging
    status, adjust settings, and view real-time data with ease.
Injet DC Chargers Adopted a Modularised Design Approach
  • PPC (Programmable Power Controller)
  • Integrated Smart HMI
  • Scalable Power Modules
  • Cabinet
  • Cable & Connector
  • Payment Terminal
PPC Makes DC Chargers Simple and Powerful

Traditional DC Chargers Consist of
  • 600 PCS of Terminal Blocks + 300 PCS Wires
  • DC Watt-Hour Meter
  • Voltage Detection Transmitter
  • Insulation Detector
  • Charging Pile Controller
  • 24V/12V AC/DC Switching Power Supply (for
    GB/T Standard)
  • AC/DC Power Supply Module
  • MCB, Relay, SPD
  • MCCB, AC Contactor
  • DC Vacuum Contactor
